How Palm Oil Extraction Plant Works?

Crude palm oil is extracted through a carefully monitored series of palm oil mill process that seeks to make sure that the end product is highly appealing. Palm oil extracting plant usually begins with harvesting of the fruit. Below seeks to cover on palm oil extraction process (screw pressing) and field factors that determine quality of expelled palm oil. (Read more: Palm Kernel Oil Extraction >>)

Palm Oil Extraction Plant
Palm Oil Extraction Plant

how to start your own production line with best business plan

The following are the main steps that you should keep in mind and follow keenly as you make sure to get a final excellent crude palm oil, which is more suitable commercial palm oil processing plant

  • Station 01. Harvesting of Fresh Fruit Bunch (FFB)

fresh fruit bunch
Fresh Palm Fruits Reception Process

For extracting oil from palm fruits, you will have to start by harvesting fresh fruit bunchs and keeping them ready for the next stage of palm oil production. Make sure that they are ripe and in good condition if you are to get a perfect result.

  • Station 02. Threshing of Fruits

FFB Threshing
Palm Fruit Threshing Process

After harvesting, you now focus on thresher drum palm oil mill. You start by removing fruits from the bunch and then start threshing. This stage can easily be managed by the use of hand or sometimes the use of mechanic thresher that gives a better finished product. The thresher is well known for its ability to easily vibrate and rotate the fruits as it separates them from the bunch.

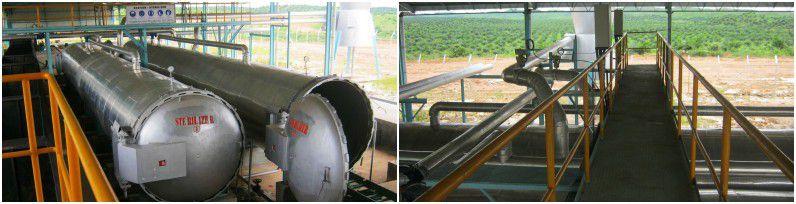

  • Station 03. Sterilization of Fruits

Sterilizing of palm oil extracting plant
Palm Fruit Sterilization Process

Sterilization process in palm oil mill is an important step of palm oil extracting that uses heat to help in the partial cooking of fruits. It is done with a lot of care and following of instructions while at the same time focusing on stopping of enzymatic reactions that are known to cause oxidation and also the disruption of cells in the mesocarp. Through this step, easier extraction of oil is achieved and this makes producers to continue focusing on the next step.

According to experts, wet processes work well with the use of water that sterilizes the fruit through a boiling process or streaming of fruits and production of waste water as the byproduct. On the other hand, the use of dry process helps in the sterilization of the fruits through a roasting process or a perfect smoking process. During the implementation of wet process, the fruit is easily sterilized before any threshing process. In any dry process, threshing of fruits is done after the sterilization process.

  • Station 04. The Digestion Process

digesting and palmoil extracting
Palm Fruit Digestion Process

Palm oil digestion is a process that focuses on crushing of fruits before any extraction of palm oil. It is a better stage that highly focuses on warming the pulp through a perfect process to easily maximize oil yields. This stage calls for maximum concentration and you are also allowed to remove the nut from its pulp before focusing on palm oil milling process stage to yield grade A oil. Another option is to press the mesocarp with the use of nut. (Read more: Palm Kernel Oil Extraction Machine Price in Nigeria >>)

  • Station 05. Palm Oil Extracting (Mechanical)

palm oil making machine
Palm Oil Pressing Process

It is during this stage that you now start focusing on pressing or extracting the oil. Here, the pulp is pressed in palm oil expeller, it burst all cells that contain oil and releases the palm oil. This is an important stage that seeks to focus on several types of presses that usually focus on pressing of fruit pulp. (You may also like: Mini Palm Oil Processing Machine >>)

You can use the Single Screw Oil Press for small or medium scale palm oil production; and Double Screw Oil Press for medium or large scale palm oil extraction. In the modern times, the screw oil press has gained a lot of popularity because of its ability to yield more oil when pressing mesocarp.

  • Station 06. Crude Palm Oil Clarification

palm oil clarification section
Palm Oil Clarification Process

After oil extracting, the oils are usually taken to a clarification section to easily help in the removal of impurities. It is in this stage that the final crude palm oil is received, observed and finally stored in a bulk tank. The oil is kept well to make sure that there are no impurities. It is an important stage that helps in the clarification of the real product and other wastes to make sure that you get the most important product. (Related equipment: Palm Oil Filter Machine >>)

  • Station 07. Palm Kernel Recovery

palm kernel recovery section
Palm Kernel Recovery Process

Nuts and fiber are usually separated in this physical stage after all solids leave the important screw presses. Fiber products here can be used as good biomass fuel in boilers and the nuts used in the extraction process of palm kernel (Read more: Palm Kernel Oil Extraction Plant >>).

how to start your own production line with best business plan

Please Note: If you want produce high quality palm oil, you can also consider palm oil refining process. By degumming, deacidifying, decolorizing and deodorizing, the impurities in the palm oil can be removed to make the refined palm oil meet the national edible oil standard. Refined palm oil can be processed further, using palm oil fractionation equipment, which can be divided into palm-softener and palm-stearearer. The oil is better, and the price is higher. (Read more: Cost of Building a Palm Oil Refinery >>)

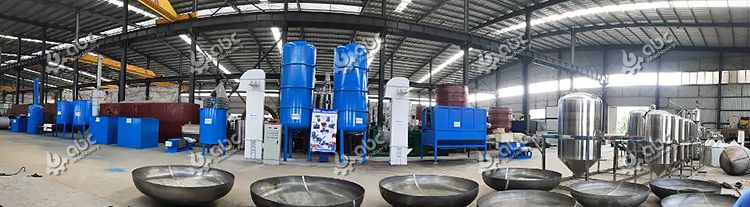

Small Palm Oil Extraction Plant for Sales

Small Palm Oil Extraction Plant
Small Palm Oil Extraction Plant
Model Capacity
Mini Scale Palm Oil Mill Plant 1~10 tons per day
Small Scale Palm Oil Mill Plant 10~20 tons per day

In addition to medium and large palm oil extraction plant, we can also customize different daily processing capacity of small scale palm oil production lines for small business, such as: 1 ton/hour, 2 tons/hour, 3 tons/hour, 5 tons/hour, etc. Small scale palm oil extraction plant include six steps: threshing, sterilization, digestion, pressing, crude oil clarification and filtration, all of which are mechanically automated and work more efficiently. Welcome to contact us to get the latest price list!
