If you are searching for complete crude palm oil processing machines for puting up a middle-sized palm oil extraction company, here is palm oil mill project for reference. It is a complete production line of crude palm oil, which can processing about 4 tons of palm fruit per hour. We can also offer small scale palm oil processing plant with the production output 1~20 ton/day.

Setup A Crude Palm Oil Factory

View the following photos to know about the crude palm oil making factory we built in Nigeria. If you are willing to get a customized palm oil processing business plan in nigeria, we will alwasy glad to serve you!  (Read More about production of refined palm oil, and fractionation of palm oil )

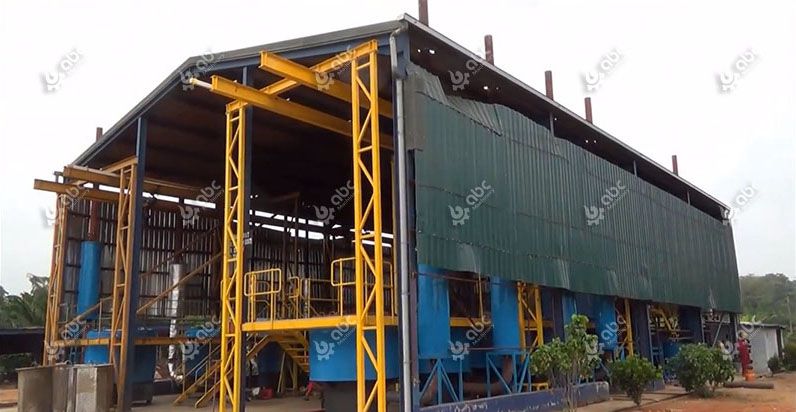

medium scale palm fruit processing mill

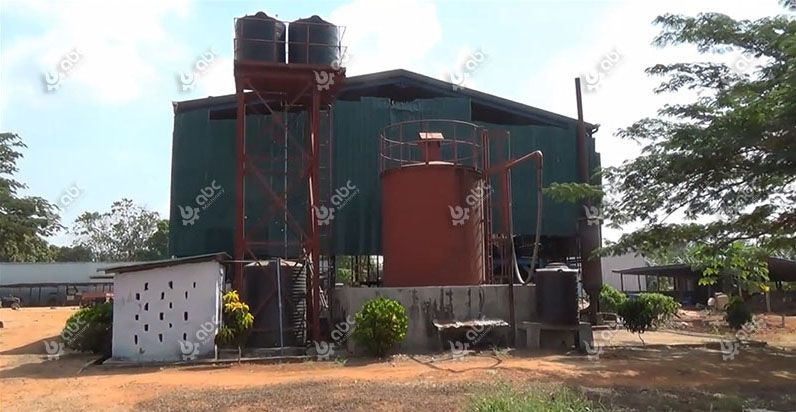

Crude Palm Oil Processing Mill
crude palm oil processing mill layout design
Side View of the Palm Oil Plant

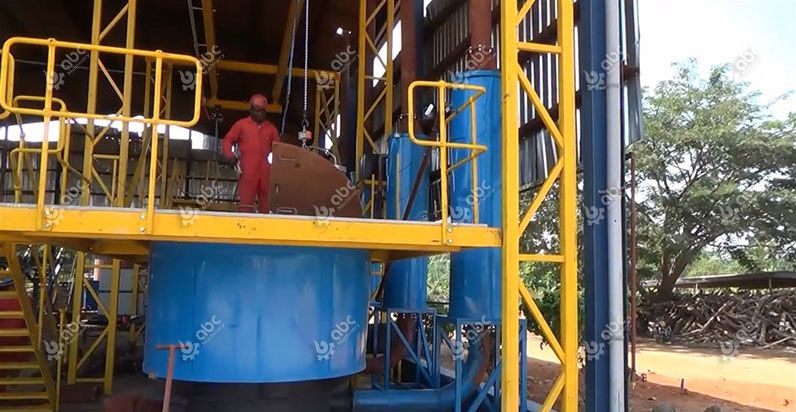

palm fruit buches cooking platform
FFB Cooking Platform

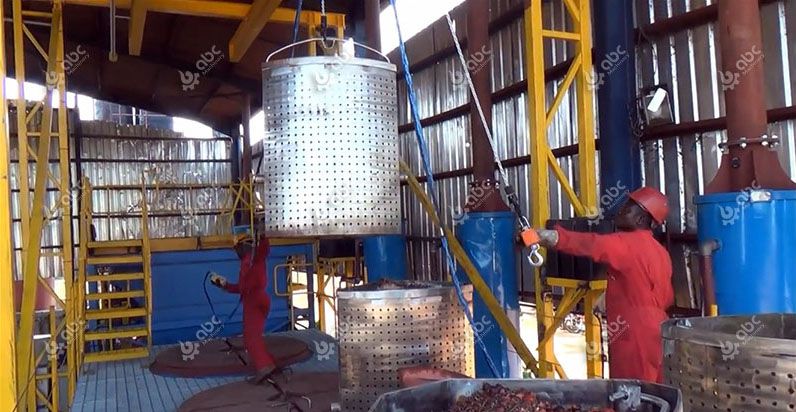

from cooking machine to digesting machine
From Cooking to Threshing Process

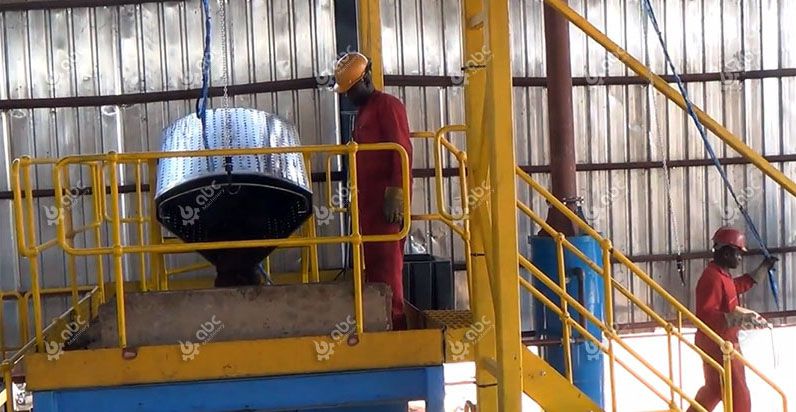

empty the palm fruit basket into the stripper
Empty the Basket

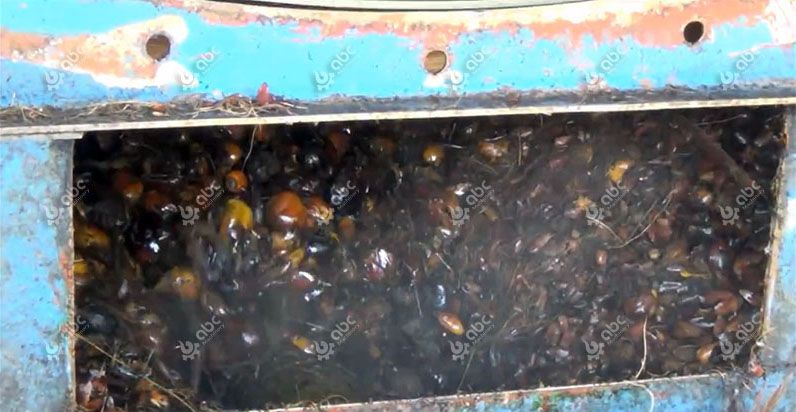

FFB digesting machine
Digesting of Palm Fruits

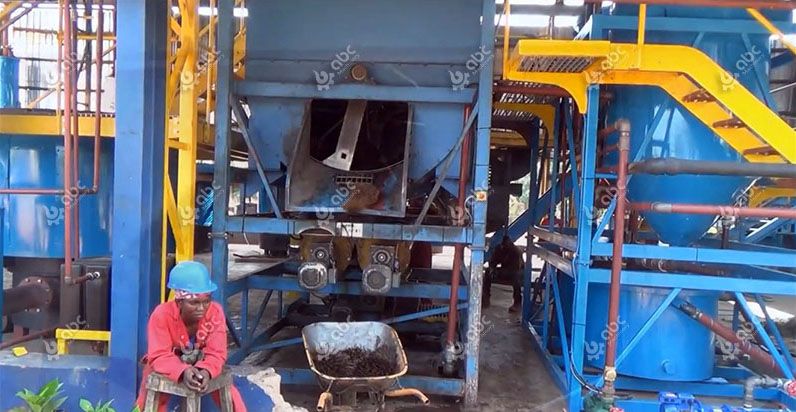

FFB threshing machine
FFB Threshing Machine

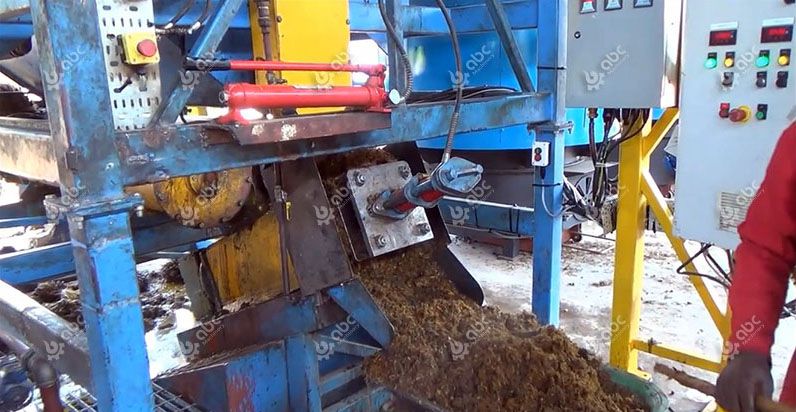

palm fibre and nuts from the oil press
Palm Kernel & Fibre Discharged from Oil Press

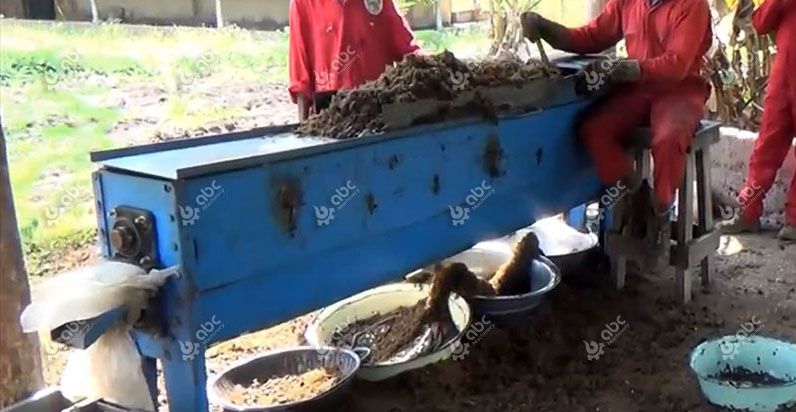

palm fibre and kernel seperator
Kernel and Fibre Separator

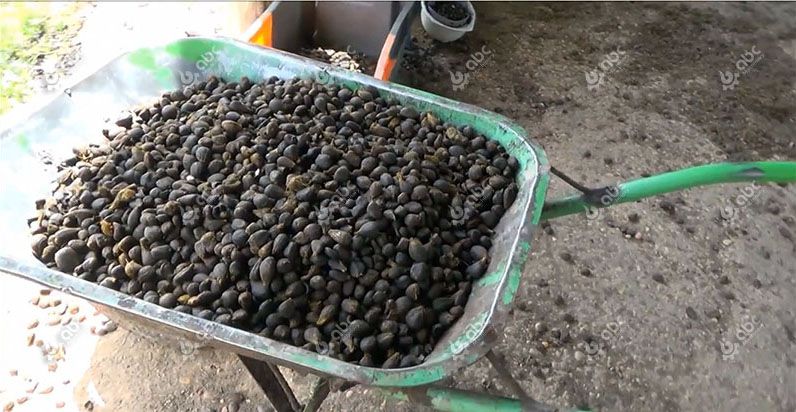

separated palm kernel
Separated Palm Kernel

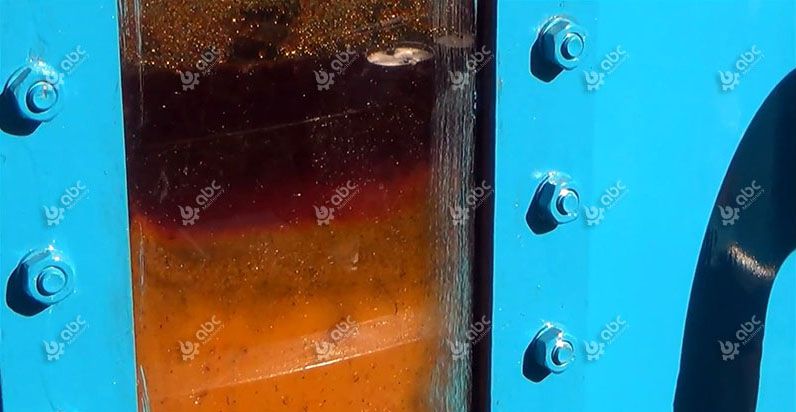

crude palm oil in tank
Crude Palm Oil

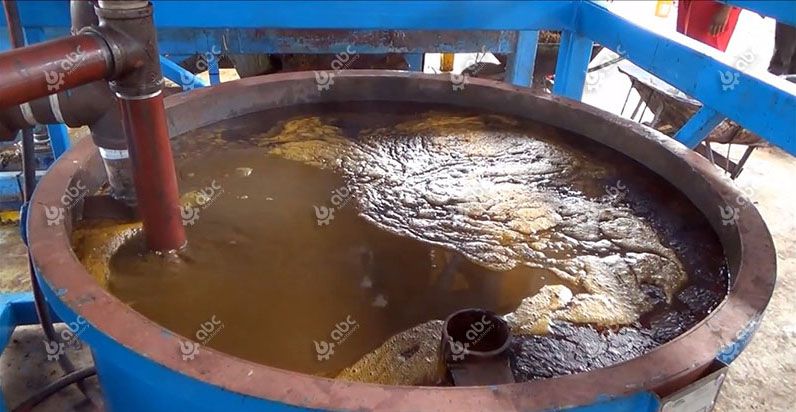

clarification of palm oil
Clarification of Crude Palm Oil

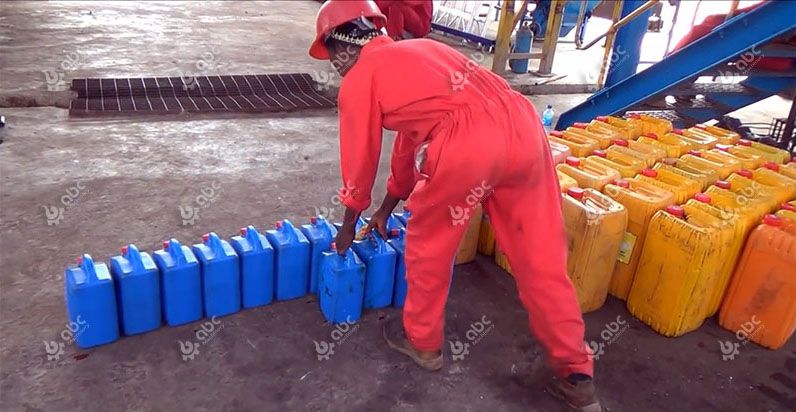

crude palm oil after filled into bottles
Canned Oil

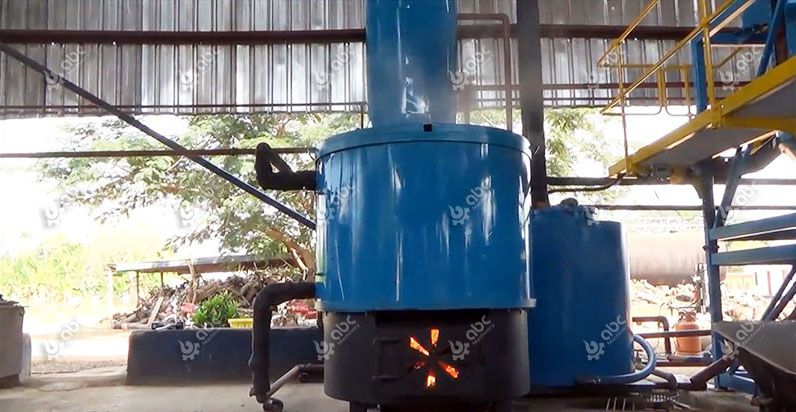

biomass fueled furnace
Biomass Furnace

If 4 ton per hour production is too big for you, we also have a project of 2 ton/h Crude Palm Oil Machine you can take for reference. Don't hesitate to get in touch with us for detailed equipment and construction cost.


Price of the Complete Crude Palm Oil Processing Machine

How much does it cost to build such a palm oil manufacturing project? Well, you need to invest about $230,000~$300,000 for setup the palm oil factory.

Whay is the construction cost range so large? The exact cost depends on many factors including palm fruits situation,  level of automation, whether kernel and fibre separation system is needed, whether oil filling machine is included, your requirements on final crude oil and so on. Get in touch with us now and let us help you make the business plan on palm oi processing and calculate the cost of plant construction and production costs and profits. (Related Post: Palm Oil Mill Project Cost)

how to start your own production line with best business plan

A small palm oil processing plant necessarily does not mean less efficient with low production capacity. Even small-scale palm oil processing plants can handle a considerable amount of production. For existing palm oil mills, enhancing the capacity of a small palm oil mill plant from 2 tonnes per hour to 4 tonnes per hour can quadruple the production. This small palm oil processing plant that was upgraded in 2017, is a live example.

A production unit doesn't require costly machines like steam boilers or any other pressure vessels like autoclave sterilizers to work efficiently. This helps to cut-down capital costs and machinery maintenance expenses. (Here is an article about palm kernel oil extraction for whose who want to start palm kernel oil extraction companies in nigeria.)

Crude Palm Oil Processing Flow Design

View the content below to get a clear understanding of the palm oil mill process flow. Any questions about palm oil mill operation and processing, welcome to apply for our free counseling service!

  • Receiving Palm Fuit Bunches

The first step is to receive fresh fruit bunches (FFB) from the oil palm plantations. They are then weighed and threshed to remove stems from bunches by using palm fruits threshing machine, halved or quartered manually before putting inside the basket. The fruits are then loaded into stainless steel cooker baskets, each of which has a holding capacity of approximately 200kgs of FFB.

  • Cooking / Sterilization

After the cooker baskets are filled, they are moved to the gantry and lifted onto the cooker platform with an advanced technology of electric chain hoists. Next, they are loaded into the cooker for steaming which lasts for 90 minutes. Maintaining the right temperature between 85 to 100 degree Celsius, and adjusting when required is a simple process and can be done conveniently as required.

  • Emptying baskets

After the palm fruits are cooked for 90 minutes, the baskets are lifted from the cookers and moved to the self-tipping mechanism which is placed on top of the stripper platform. An operator controlling the movement of the machinery empties the baskets into the stripper.

The mechanism is designed in a way that it allows fruits to automatically dislodge from the bunch. Empty fruit bunches are then ejected from the drum and removed for drying. These when dried, make excellent fuel for the furnaces and also great compost for plantations.

  • Digestion

After sterilization, the palm fruits go into a digester where boiling water is added to dilute to make digestion easier. During the digesting process, the cells of the fruits rupture, this accounts for the palm oil production.

  • Palm Oil Extraction

A screw type of palm oil processing machine (also known as palm oil expeller) compresses the digested fruits between the main screw and the traveling cones to extract oil. When the digested fruits are passed through the mechanical palm oil press, the oil, water, and other liquid impurities are forced into the crude oil tank whereas the dry fiber and nuts find their way out through the cones.

  • Crude Oil Clarifying and Water Treatment

When the oil extraction is over it is time to clarify the oil and make it usable. The palm oil clarification process is basically meant for separating impurities from the crude palm oil. The extract from the screw press consists of water, fibers, and impurities. The crude oil is pumped into the clarifiers and processed at temperatures between 86 and 95 degrees Celsius. The finished palm oil separates from the water and other solids when boiling water is added as a diluter. The effluent which comes out at the end is drained to either effluent ponds or used for killing weeds.

  • Palm Oil Storage and Packing

The palm oil is then stored in the oil tank. As and when required, oil is weighed and bottled.

In recent years, small and medium scale crude palm oil processing is becoming a hot project to invest in, especially in Malaysia, Indonesia, Nigeria and Thailand. Feel free to contact us now to get free guidance on open a palm oil pprocessing conpany. Besides, we have built many project around the world including Nigeria and Thailand.
